A-SUN SRCC Green Cycle Low Pressure Solar Collector
A-SUN SRCC Green Cycle Low Pressure  Solar Collector
A-SUN SRCC Green Cycle Low Pressure  Solar Collector
A-SUN SRCC Green Cycle Low Pressure  Solar Collector
A-SUN SRCC Green Cycle Low Pressure  Solar Collector
A-SUN SRCC Green Cycle Low Pressure  Solar Collector
Model
XKNC

Item specifics

Application
Swimming pool ,project ,Factory ,Hospital ,School
Warranty timne
5 Years
Life time
15 years
Brand
A-sun, OEM & ODM are acceptable
Trade Term
FOB,CNF & CIF

Review

Description

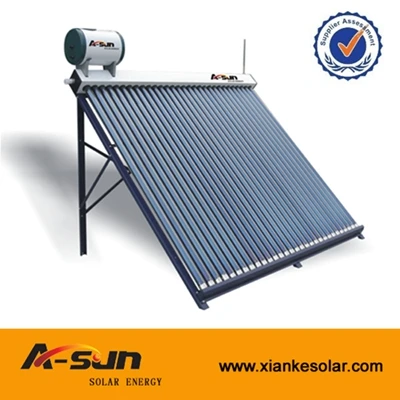

Low Pressure Solar collector





Prouduct  Description


  Feature  1. there is  water inside of the vacuum tube and it is suitable for middle and low latitude area.

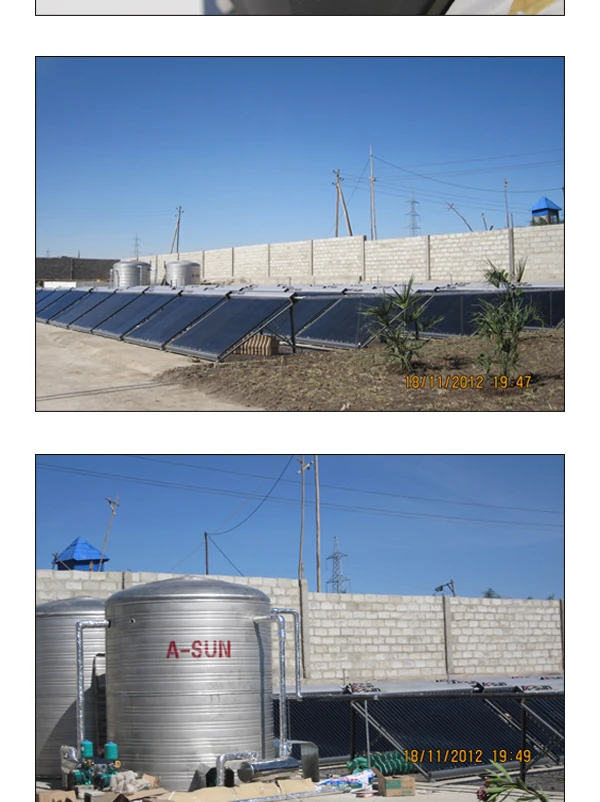

 2. it is widely used in the hot water supply of large building such as hotel, school, or swimming pool.

 3. high heat transfer rate over 95%.

 4. it is combined with big storage tank.

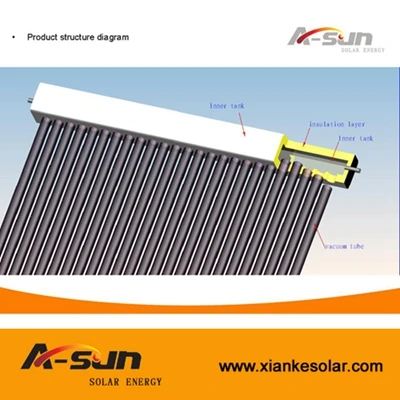

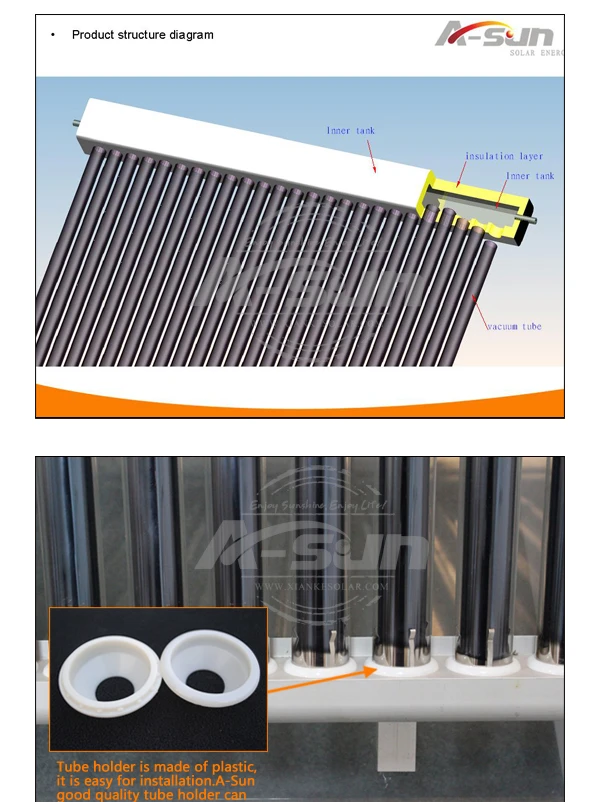

  MATERIAL
1.manifold box : SUS304/2b 0.4mm, zinc steel painted plate 0.4mm  ,
2.insulation layer: 50mm PU layer
3.vacuum tube: single or three target 47*1500/58*1800
4.frame: aluminium sheet / zinc steel painted plate

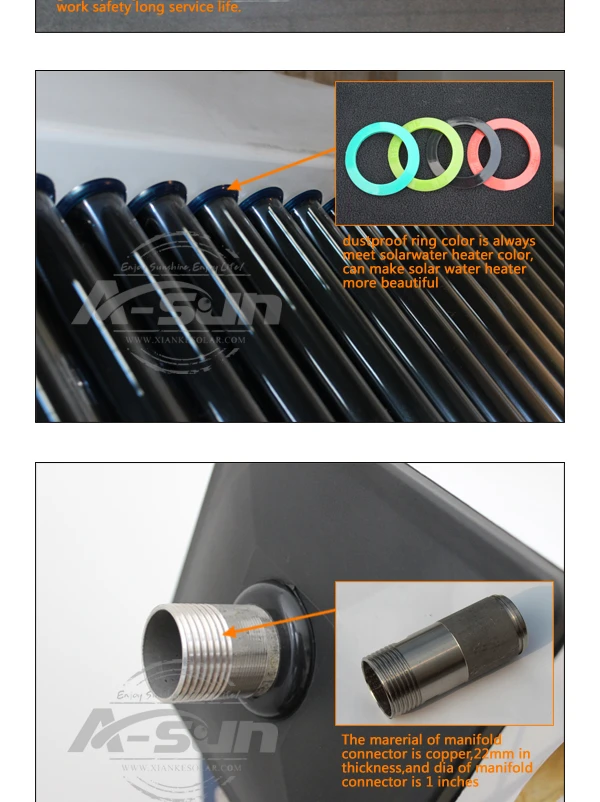

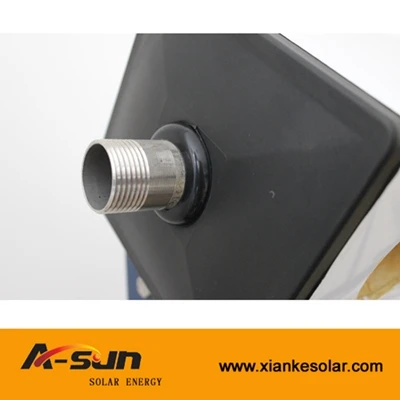

5. water Nipple : SUS304-2B, 1 '' ,Female



Product Detail


solar water heater

solar collector

solar collectors



Production Step




             solar water heater






Packing Detail




low solar collector



Model aperture area(M2) Packing volume(M3)cross wet(KGS)container loading(set)
qty(pcs)20GP40GP40HQ
XKNC58-1800-151.421150.2548.1108224272
XKNC58-1800-201.894200.3264.184175212
XKNC58-1800-252.369250.3979.567142173
XKNC58-1800-302.842300.4696.255120144
XKNC58-1800-254.738500.651504386104
