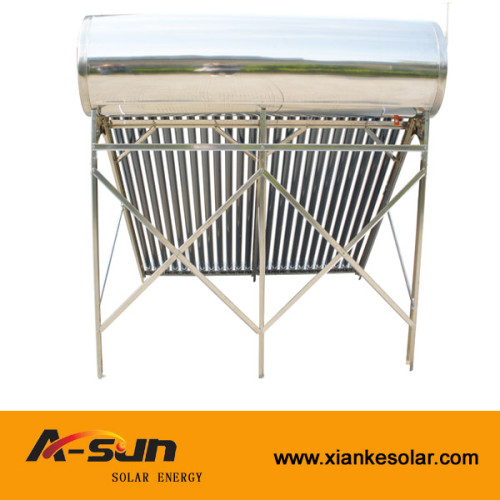

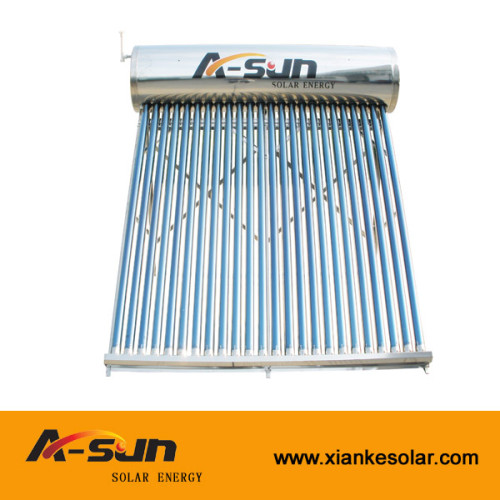

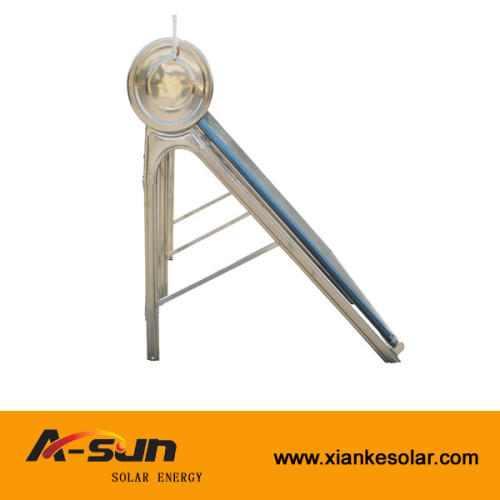

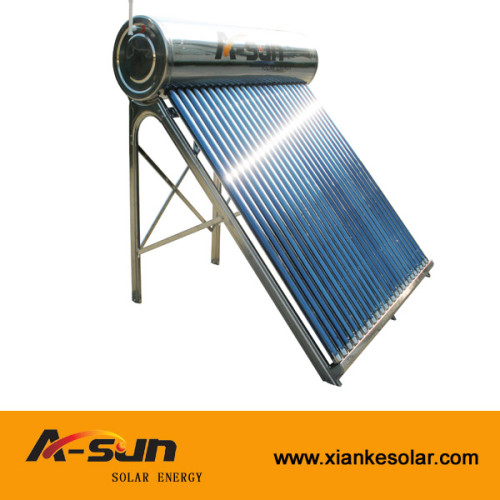

SABS 100 Liter Low Pressure Cheap Stainless Steel Solar Geyser
- Model
- XKNP
Item specifics
- Warranty time
- 3 Years
- Deliver Time
- 5-15 working days
- Brand
- A-sun,OEM &ODM are acceptable
- Life time
- 15 years
- Material
- Zinc coating steel or Stainless steel
- Capacity
- 100 - 360 liter
- Trade Term
- FOB,CNF &CIF
Review
Description
Non-Pressure Solar water heater
Installation Video
Prouduct Description
| Feature | 1. the coating inside of the vacuum tube absorbs the solar energy. 2. water inside of the vacuum tube is heated by the coating layer. 3. the vacuum tubes insert into the non-pressure tank, so the hot water and cold water can circulate by themselves because of different density. 4. non-pressure tank with PU layer keeps the water hot and store the water. 5. open loop type, hot water is supplied to the shower room because of water drop. 6. easy to install and high heat transfer rate over 95%. 7. if add the feeder tank, it could load the water automatically and reduce the water pressure. 8. it is also applied in the water supply system with big storage tank and widely used in Middle East, South America. |
| Model | Non-pressure solar water heater |
| Size | 58*1800-10/12/15/18/20/24/30/36/40/50Tube |
| Capacity | 100/120/150/180/200/240/300/360/400/500L |
| Inner tank | SUS304-2B 0.40mm-0.5mm,applies tig welding, the most advanced technology from South Korea.Inner tank is produced with longitudinal welding,which anti-leakage and anti-rust for more using life |
| Bath application | 2-10 people |
| Outer tank | zinc steel painted plate or stainless steel plate ,anti-corrision and anti-oxidation |
| Insulation layer | Imported PU layer 50-55mm with computer foaming,with 24 hours ripening process,and heat insulation material ACIR |
| Structure | Upper air vent hole,side prepared hole,side temperature sensor hole,lower inlet,electrical heater hole,diameter of water tank is 460/470/480mm |
| Frame | Zinc steel painted plate with width 10cm and thickness1.5mm,or stainless steel with width 10cm and thicknes s 1.2mm,angle 27/38/45,which defend against typhoon |
| Vacuum tube | Three target vacuum tube，with CU/SS-ALN coating film have high performance of absorb and low reflection ratio. |
| Fastener | Stainless steel screw |
| Silicon ring | High polymer silicon rubber |
| Reflector | 0°/27°/38°/45° |
Heating absorption temperature | 50-99℃ |
| Warranty | 3 years for water tank, 5 years for vacuum tube and frame, 1 year for electronic product and accessory |
Product Detail
Production Step
Technical Advantage
Packing Detail
| Model | aperture area(M2) | volume(L) | Packing volume(M3) | cross wet(KGS) | container loading(set) | ||
| 20GP | 40GP | 40HQ | |||||
| XKNP58-1800-15 | 2.1 | 150 | 0.56 | 56 | 44 | 98 | 120 |
| XKNP58-1800-18 | 2.51 | 180 | 0.65 | 67 | 40 | 83 | 103 |
| XKNP58-1800-20 | 2.92 | 200 | 0.71 | 75 | 35 | 76 | 95 |
| XKNP58-1800-24 | 3.33 | 240 | 0.83 | 89 | 30 | 62 | 79 |
| XKNP58-1800-30 | 4.14 | 300 | 1.02 | 111 | 25 | 55 | 64 |
| XKNP58-1800-36 | 5.04 | 360 | 1.22 | 130 | 19 | 43 | 53 |
Application
House ,bathroom ,Kitchen ,School,Hotel
FAQ
1- What is your Delivery Time?
LCL order/Sample order:3-7days.
Full container order:7-10 days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM?
Yes,will do OEM Basing on your detailed requirements.
4- What is your Payment Term?
We accept T/T,LC,Paypal,Alibaba trade assurance,Western.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wooden box Package.
Full container order in Standard quality export carton with PE Foam Protection.
7- What is your FOB Port?
We accept FOB shanghai & Ningbo.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail
